HALCO® Auto Mold-In Hook

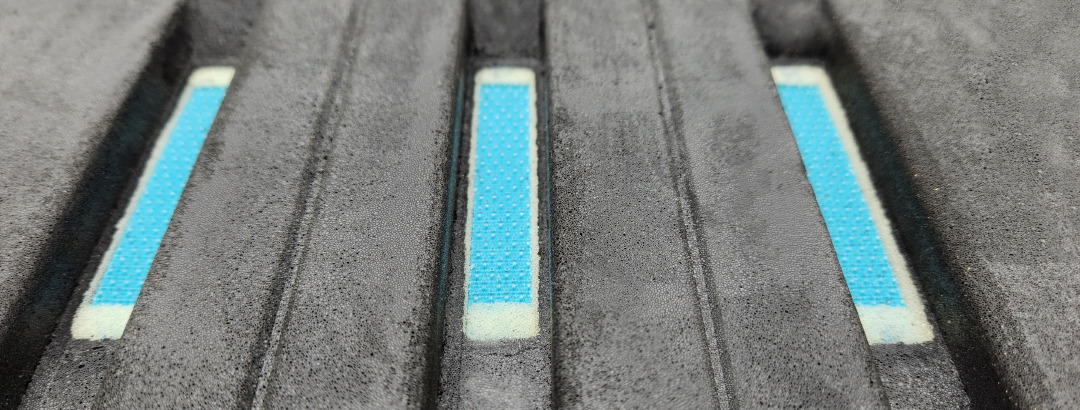

HALCO® Auto Mold-In Hook is a mushroom hook fastener designed to be molded directly into polyurethane foam during automotive seat manufacturing. The high-strength mushroom hook engages aggressively with various loop styles in the market. By integrating the hook fastener into the foam pour, seat manufacturers eliminate secondary attachment operations and achieve a clean, rattle-free seat cover attachment.
Available in shieldless and shielded configurations, with straight and curved versions to support design flexibility. Various backings available to ensure optimal foam adhesion. FMVSS 302 compliant.
Key Markets
- Transport
Colors
- Green
Product Technical Data

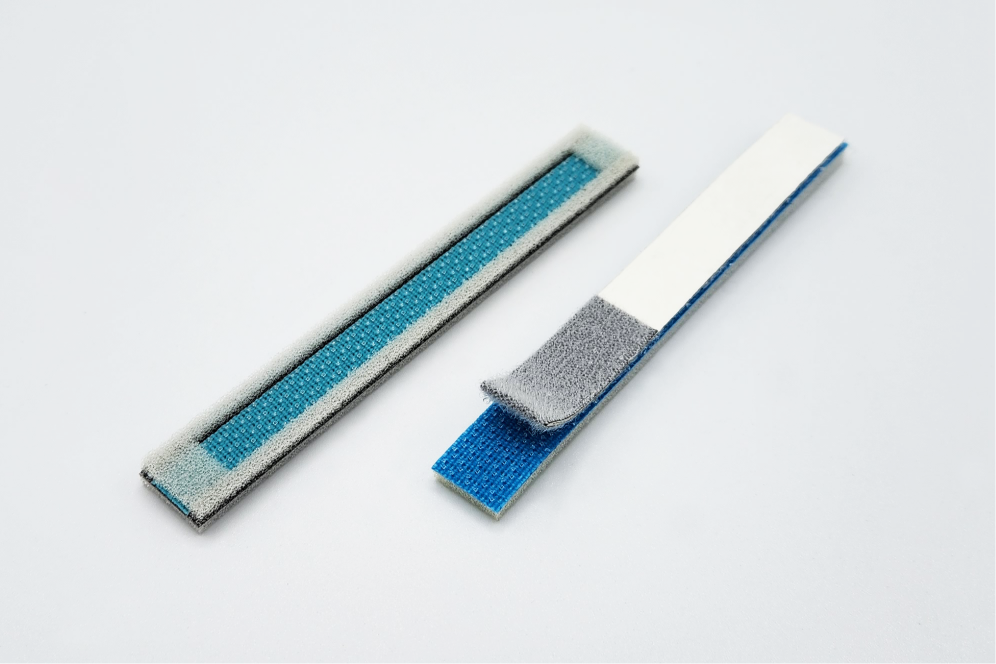

HALCO® Auto Mold-In Hook is available in two versions:

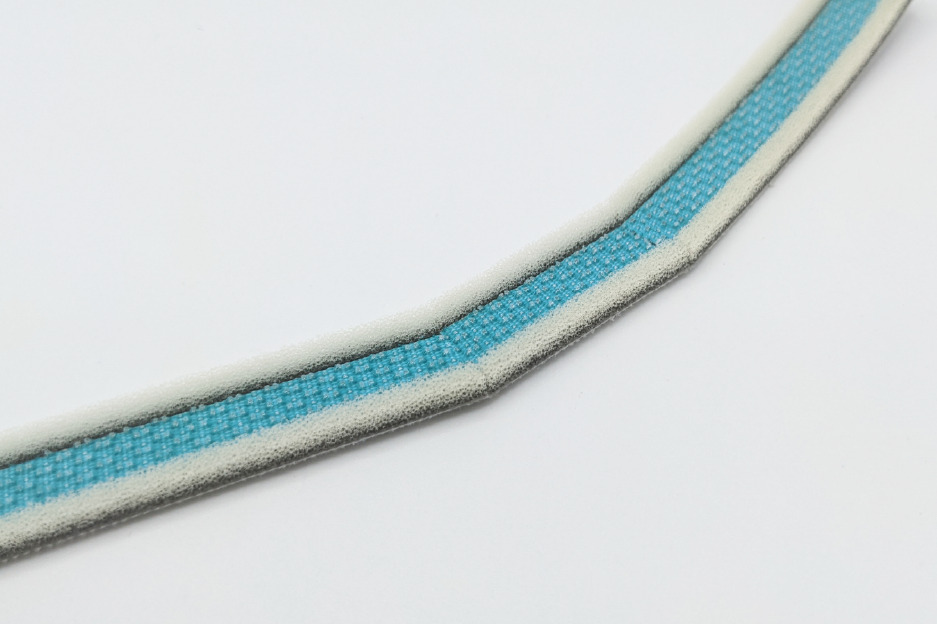

Shieldless Mold-In: Features a polyurethane foam gasket surrounding the polypropylene mushroom hook. The backing is made of a metal resin layer and polyester knit loop backing.
Shielded Mold-In: Features a disposable paper shield with metal resin embedded. Polypropylene mushroom hook with a polyurethane backing. Available in any width.
Halco can die-cut mold-in hook to any width from 10mm upwards, allowing for a wide range of hook attachment strengths to match your design requirements.
| Halco® Auto Mold-In Hook | |
|---|---|
| Material | Polyester / Polypropylene |
| Hook Height | 1.2mm (0.047″) |
industry standards and SPECIFICATIONS
- REACH & RoHS Compliant
- CALIFORNIA PROP 65
- FMVSS302 flammability
- Not all specifications and certifications are listed here. Speak to a representative for more information
CUSTOM SOLUTIONS
Halco is an expert at hook and loop die-cutting and can cut specific shapes very efficiently to match your design. We also slit and add custom liners to our materials to better match our customer’s assembly process.
