Thermal Insulation Blankets and Covers

Tool-free hook and loop closures for thermal insulation blanket straps

HALCO® manufactures and converts three families of high-performance hook and loop engineered for thermal insulation blanket strap service: stainless steel hook with aramid loop for extreme temperature and cryogenic applications, polyphenylene sulfide (PPS) hook and loop for high-temperature sewn assemblies, and FR woven nylon hook and loop for general-purpose flame-retardant blanket service. All three are supplied as pre-converted components — precision-slit roll stock, cut-to-length pieces, die-cut shapes, and adhesive-laminated strips — that thermal insulation blanket manufacturers use to fabricate finished straps.

Closure configurations used on thermal insulation blankets

Thermal blanket fabricators use three closure configurations, all involving hook and loop. The right choice depends on operating temperature, equipment geometry, and how often the blanket strap needs to be adjusted or opened:

• Hook and loop as the complete closure. Used wherever the specialty hook and loop’s temperature rating matches the service environment and mechanical demands don’t require additional securement. This spans cryogenic service up to roughly 495°F continuous when the appropriate Halco product is specified. Hook and loop handles both positioning and primary closure. Common on HVAC and chiller blankets, commercial refrigeration, cryogenic service lines (where the closure sits on the warmer outer face of the blanket), valve and flange covers, motor and compressor covers, semiconductor equipment, acoustical insulation jackets, and mid-to-high temperature industrial piping and process equipment.
• Hook and loop in combination with lacing wire, D-rings, or grommets. Used where stainless steel lacing wire is required for primary tension — typically because the service temperature exceeds the rating of textile fasteners, or because the application requires permanent mechanical securement. Hook and loop positions the blanket during initial fit, closes the seam, and supports quick maintenance access without disturbing the wire. Common in high-temperature steam systems, large pressure vessels in refining and petrochemical service, and certain aerospace thermal control applications.
• Hook and loop in combination with tension springs. Used primarily on engine and exhaust insulation blankets where coiled stainless steel springs provide constant tension between anchors. Hook and loop covers the closure seam and supports initial positioning. Seen in automotive, marine, generator-set, and some aerospace exhaust applications.

The Hook and Loop Workflow advantage

In each of the three closure configurations above, hook and loop contributes workflow advantages that mechanical-only closures don’t deliver:

• Faster initial positioning. Installers can quickly orient and tack the closure during initial blanket fitting, without threading through buckles or twisting wire.
• In-place adjustment. Peel, reposition, and re-engage to fine-tune fit as the blanket settles or thermal cycling changes the seam profile — without removing the blanket from the equipment.
• Tool-free maintenance access. When equipment service is required, the hook and loop section of the closure can be opened and re-closed in minutes.
• Conformability to irregular geometry. Valves, flanges, instrumentation, and complex equipment shapes that resist rigid hardware accept hook and loop closures cleanly.

In configurations where hook and loop is the complete closure, these advantages are realized at every installation and maintenance cycle. In configurations where hook and loop works in combination with lacing wire or springs, the workflow benefits still apply across the strap’s service life — and the mechanical fastener still handles the primary tension.

Why specialty hook and loop is required for thermal blanket service

Standard nylon hook and loop softens above 200°F and degrades rapidly under thermal cycling. That experience is the source of a common misconception in the insulation industry that hook and loop “doesn’t work” on thermal blankets. The misconception is correct about the wrong material but wrong about the closure type — specialty fasteners built around stainless steel, PPS, and aramid solve the temperature, cycle count, and mechanical demands of thermal blanket strap service. The Halco products on this page are engineered specifically for that environment.

Halco’s three high-performance hook and loop solutions

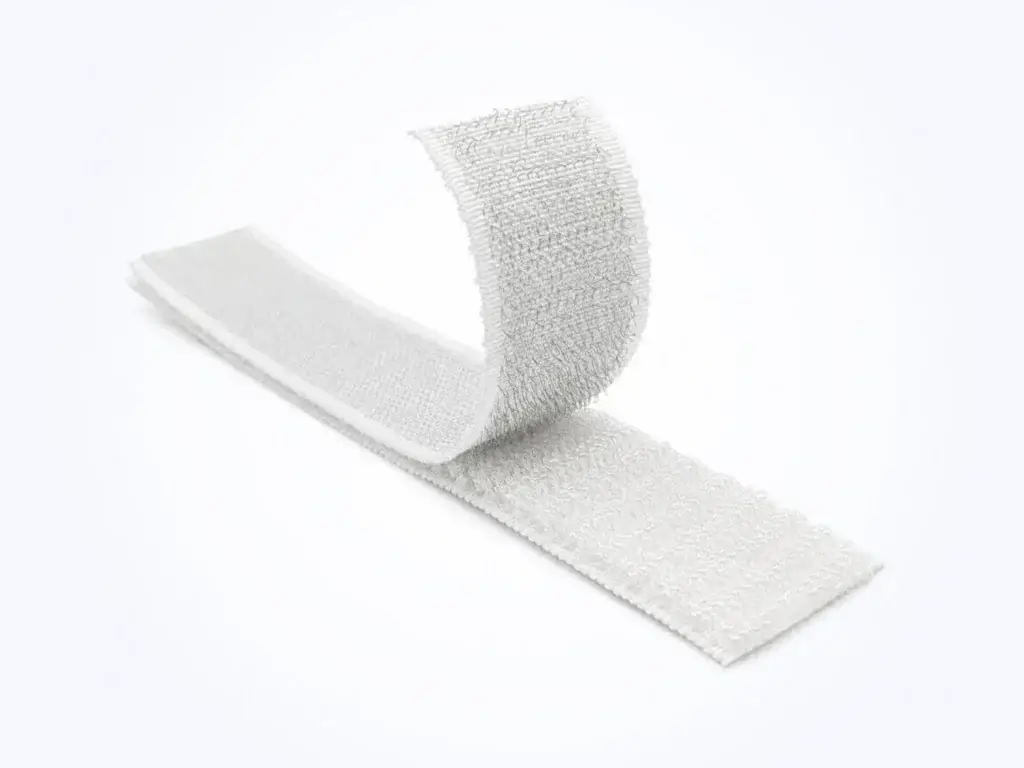

HALCO® High Temp Stainless Steel Aramid Hook and Loop

Stainless steel hook on aramid base. -76°F to 455°F continuous. Cryogenic and extreme-temperature service.

VIEW PRODUCT

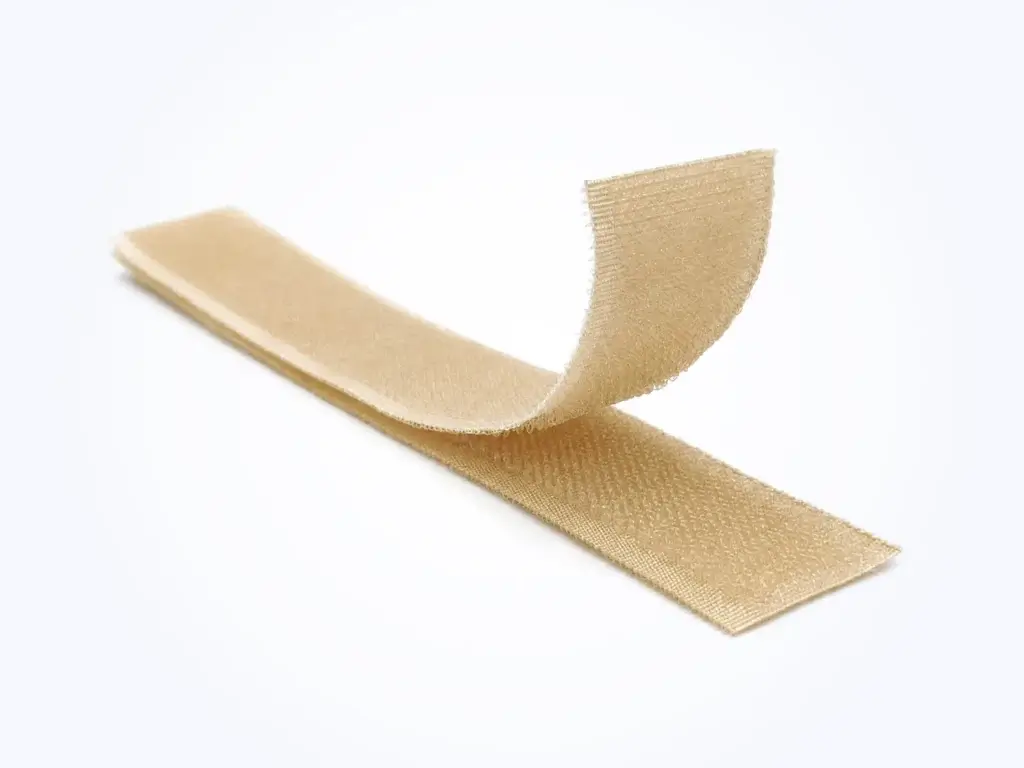

HALCO® Heat Resistant PPS Hook and Loop

PPS construction. Continuous service to 495°F. More conformable and easier to sew than stainless steel.

VIEW PRODUCT

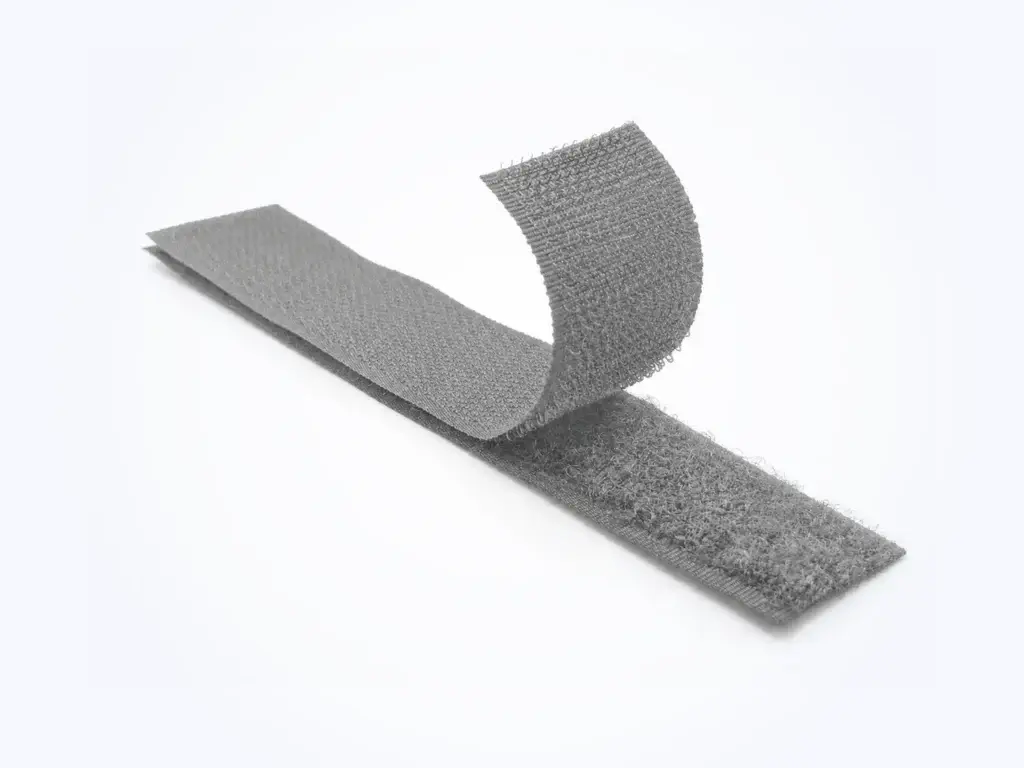

HALCO® FR Hook and Loop

FR-coated 100% nylon woven. Continuous service to 250°F. Gray standard for thermal blankets.

VIEW PRODUCT

Quick Product Comparison

Where Halco products are used in thermal blanket applications

Halco’s specialty hook and loop supports thermal blanket fabricators serving:

• Power generation — turbines, steam piping, valve covers, expansion joints
• Petrochemical and refining — vessels, reactors, exchangers, exhaust systems, flange covers
• Industrial process — plastic injection machinery, autoclaves, ovens, dryers, kilns
• HVAC and mechanical — chillers, cold-side blankets, condensate lines, AHU jackets
• Cryogenic service — LNG, liquid nitrogen, liquid oxygen, refrigerated process piping
• Marine and shipboard — engine room insulation, exhaust manifolds, generator covers
• Aerospace and space launch — thermal control blankets, cryogenic propellant lines
• Mine and tunnel ventilation — ducting jackets in extreme service environments
• Acoustical insulation — sound-attenuation blankets on motors, compressors, pumps

Why thermal blanket fabricators choose Halco

• Specialty inventory in stock — high-temp, cryogenic, and FR materials available for sample shipment same week from Hayward, California
• Custom slitting and die-cutting — widths from 1/2″ to 4″, custom shapes, custom strap lengths
• Pre-converted strap components — precision-slit roll stock, cut-to-length pieces, die-cut shapes, and adhesive-laminated strips, delivered ready for the fabricator’s sewing operation
• REACH, RoHS, and California Prop 65 compliant — full regulatory documentation supplied with every shipment
• Engineering support — material selection guidance grounded in service temperature, cycling, substrate, and finished strap construction
• 3M Preferred Converter, ISO 9001 certified

FAQs: Hook and Loop for Thermal Insulation Blankets
