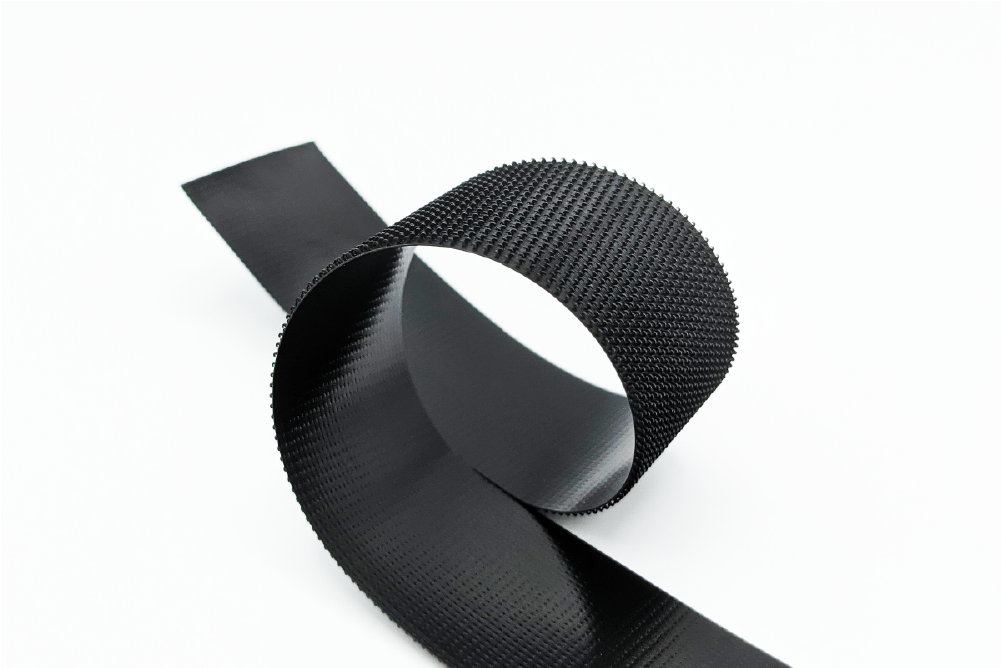

HALCO® Type 2 Molded Hook
HALCO® Type 2 Molded Hook delivers 5x the peel strength of Type 1 (2.0 lb/in vs. 0.4 lb/in) while maintaining a low-profile format at 71 mils engaged thickness. This makes it the right choice when you need stronger engagement than Type 1 but don’t require the heavier shear strength of Type 3.
Widely used in medical devices, automotive trim, display graphics, and industrial applications where a balance of peel strength, shear strength, and slim profile is required.
Key Markets
- Transport
- Medical
- Industrial
- Display & Graphics
Colors
- White
- Black
Halco offers a dye-to-match program for custom colors
Product Technical Data
HALCO® Type 2 Molded Hook pairs with knit loop for strong engagement in a low-profile format: 2.0 lb/in peel, 24.5 lb/in² shear, 71 mil engaged thickness. Moderate cycle life (40% reduction at 2,000 cycles) makes it suitable for closures with regular but not excessive use.
Available in 1/2″ – 12″ widths, slittable to custom widths. Plain back for sewing or with adhesive, fabric, suede, and loop (Back2Back) backings.
| HALCO® TYPE2 MOLDED HOOK | |
|---|---|
| Construction | Extruded Plastic |
| Material | Nylon |
| Hook Height | 0.027″ (0.68mm) |
| Melting Point | 215ºC (419ºF) |
industry standards and SPECIFICATIONS
- REACH & RoHS Compliant
- CALIFORNIA PROP 65
- Not all specifications and certifications are listed here. Speak to a representative for more information
Related Solutions from Halco
Take a look at these other products, solutions and services from Halco that are commonly considered by customers considering Type 2 Molded Hook.
HALCO® Knit Loop Tape
Low-profile loop pairing that delivers strong peel (2.0 lb/in) and shear strength (24.5 lb/in²) with Type 2 Molded Hook at just 71 mils engaged thickness.
HALCO® Type 3 Molded Hook
Step up to higher shear strength (29.3 lb/in²) with knit loop when the application demands greater resistance to sliding forces.
HALCO® Type 1 Low Profile Molded Hook
Economical low-profile alternative at 61 mils when lower peel strength (0.4 lb/in) is acceptable for the application.
Product Code Search
Use the filters below (width & color) to view popular stock sizes and their related part numbers.
If you can not see what you are looking for, don’t hesitate to reach out and speak with a Halco representative to discuss your needs.
| Product Code | Width | Length | Color | Description |
|---|---|---|---|---|
| LPSBH12-TY2 | 1/2" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH12-TY2 | 1/2" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH58-TY2 | 5/8" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH58-TY2 | 5/8" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH34-TY2 | 3/4" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH34-TY2 | 3/4" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH100-TY2 | 1" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH100-TY2 | 1" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH112-TY2 | 1 1/2" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH112-TY2 | 1 1/2" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH200-TY2 | 2" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH200-TY2 | 2" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH400-TY2 | 4" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH400-TY2 | 4" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH600-TY2 | 6" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH600-TY2 | 6" | 55 YD | White | Type2 Molded Hook Plain-Back |
| LPSBH1200-TY2 | 12" | 55 YD | Black | Type2 Molded Hook Plain-Back |
| LPSWH1200-TY2 | 12" | 55 YD | White | Type2 Molded Hook Plain-Back |
